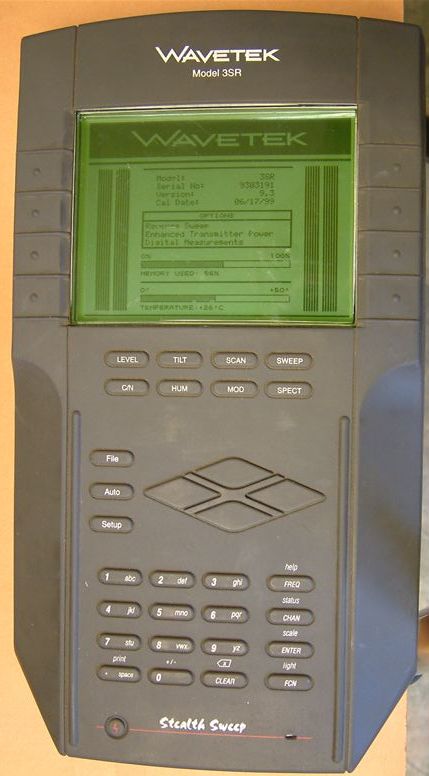

Használt,jó állapotú 3SR műszerek eladók,opcióval vagy anélkül.
* Range: 5 to 1,000 MHz
* Resolution Bandwidths: 30, 280, and 1,000 kHz
* Tuning Resolutions: 10 kHz
ˇ
Level Measurement
* Range: -45 to +60 dBmV
* Resolution: 0.1 dB
ˇ
Hum Measurement (carrier ≥ -5 dBmV)
* Range: 0 to 10%
* Resolution: < 0.2%
ˇ
Carrier to Noise Measurement (carrier≥ 20 dBmV)
* Range: -20 to -55 dBc
* Resolution: 0.5 dB
ˇ
Frequency Response
* Sweep Rate: approx 1 second (5 ms per data point + 100 ms
telemetry)
* Display Scaling & Range: 0.5, 1, 2, 5 and 10 dB/division; 6
vertical divisions
* Sweep Scan: User definable from 5 to 1,000 MHz
* Reference Storage: At least 8
* Sweep Trace Storage: At least 50
ˇ
Transmitter
* Frequency Range: 5 to 1,000 MHz
* Level Range: +10 to +40 dBmV; settable in 2 dB increments
ˇ
Telemetry
* Frequency: User defined, any frequency within tunable range
* Modulation: FSK, 100 kHz deviation
ˇ
Printer Interface: Serial, RS232, IBM, & HP Laserjet
ˇ
Powering - Battery Life: 2 hours continuous (absolute
worst case), replaceable battery cartridge
|
