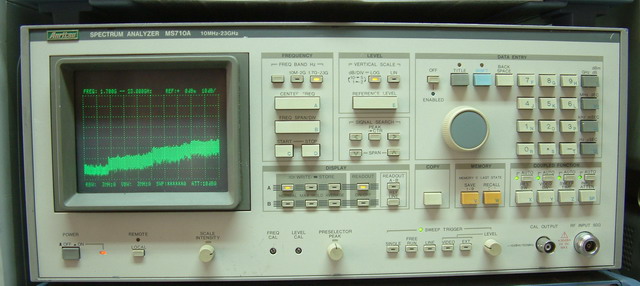

Anritsu MS710A Performance Characteristics

Form Factor

Benchtop

Minimum Frequency

100 kHz

Maximum Frequency

23 GHz

Frequency Accuracy

5 %

Zero Span

Yes

Minimum Span

1 kHz

Maximum Span

3 MHz

Minimum Sweep Time

2 ms

Maximum Sweep Time

10 s

Minimum Resolution Bandwidth

100 Hz

Maximum Resolution Bandwidth

3 MHz

Resolution Bandwidth Steps

1/3/10

Minimum Video Bandwidth

1 Hz

Maximum Video Bandwidth

3 MHz

Video Bandwidth Steps

1/3/10

Maximum Single-Side-Band Noise

-75 dBc/Hz

Maximum Safe AC Input

30 dBm

Maximum DC Input

0 V

Minimum Displayed Average Noise

-115 dBm

Maximum Displayed Average Noise

-88 dBm

Maximum Dynamic Range

-100 dB

Maximum Amplitude Uncertainty

6.6666E-02 %

Trigger Source

External,Internal

Trigger Modes

Freerun,TTL

Connector type (main signal)

Type-N(m)

Probe Power

No

Noise Source Driver

No

Anritsu MS710A Programmability/Connectivity

User Interface

Proprietary

Ports to Peripheral Devices

GPIB

Test Pattern Storage

10 Patterns

Novram data storage

Yes
