WAVETEK-ACTERNA CLI-1750

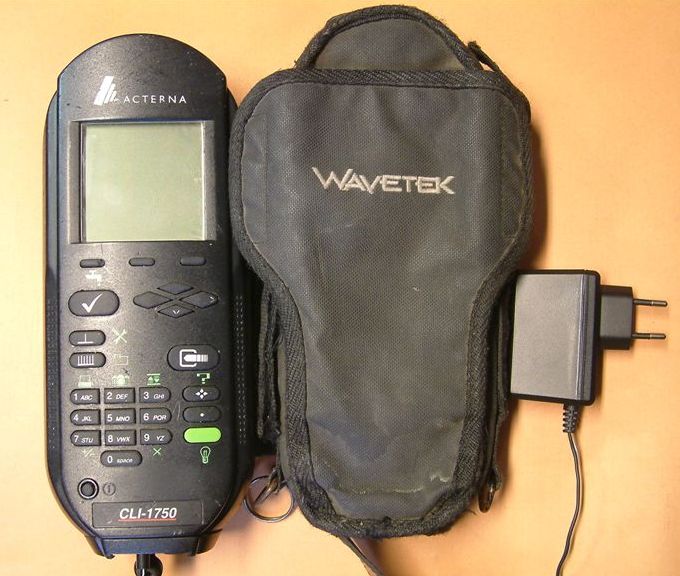

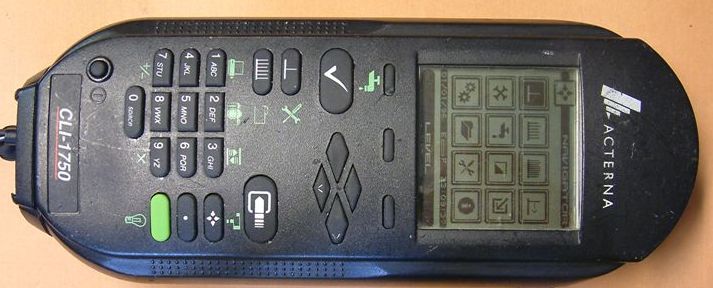

Wavetek CLI-1750 Combination Signal Level/Leakage Meters

Frequency:
Range 5 to 890 MHz

Accuracy 10 ppm @ 25C (77F)
  20 ppm over temp
Tuning Resolution 25 kHz
Level Measurement:
Range -20 to +50 dBmV
Resolution  0.1 dB
Accuracy 0.75 dB Flatness,
  0.75 dB Linearity @ 25C (77F)
Digital Average Power (optional) 2.0 dB (typical)
Scan Mode:
Number of Channels 120
Scan Rate Approximately 6 carriers/second
Leakage Mode:
Level Measurement
Input Sensitivity (with HD-1 dipole or VMA-3 mag mount)
Video Detection From 1 V with LT1000
  Leakage Tagger activated
  (121 to 133.2625 MHz).
CW Detection From 0.5 V typical with LT1000
  Leakage Tagger activated
  (121 to 133.2625 MHz).
Measurement From 1.4 V (115 to 140 MHz).
Range 0.5 to 2,000 V (at input connector)

Accuracy
Measurement 1.5 dB @ 25C (77F)
Find & Fix 2.25 dB @ 25C (77F)

Tuning Carrier
Frequency Range 115 to 140 MHz range (Video)
Accuracy 10 ppm @ 25C (77F);
  20 ppm over temp.
Resolution 25 kHz
Tagger modulation for leakage Modulation frequency
  5 to 25 Hz
Operating:
Temp. Range -10 to +50C (14 to 122F);
  3 dB drift, -10 to +50C
Water Resistance Meets or exceeds MIL-STD-810D
  (Method 506.2)
