This unit has the
following specifications:
- Frequency range 50 KHz to 26.5 GHz
- Resolution bandwidth: 10 Hz to 3 MHz in a 1, 3, 10, and 10%
increments
- Video Bandwidth: 3 Hz to 3 MHz in a 1, 3, and 10 increments
- Optimum dynamic range: 99 dBm second order; 96 dBm third order
- Tuning Resolution: 1 Hz
- Phase noise: -118 dBc/Hz at 10 kHz offset

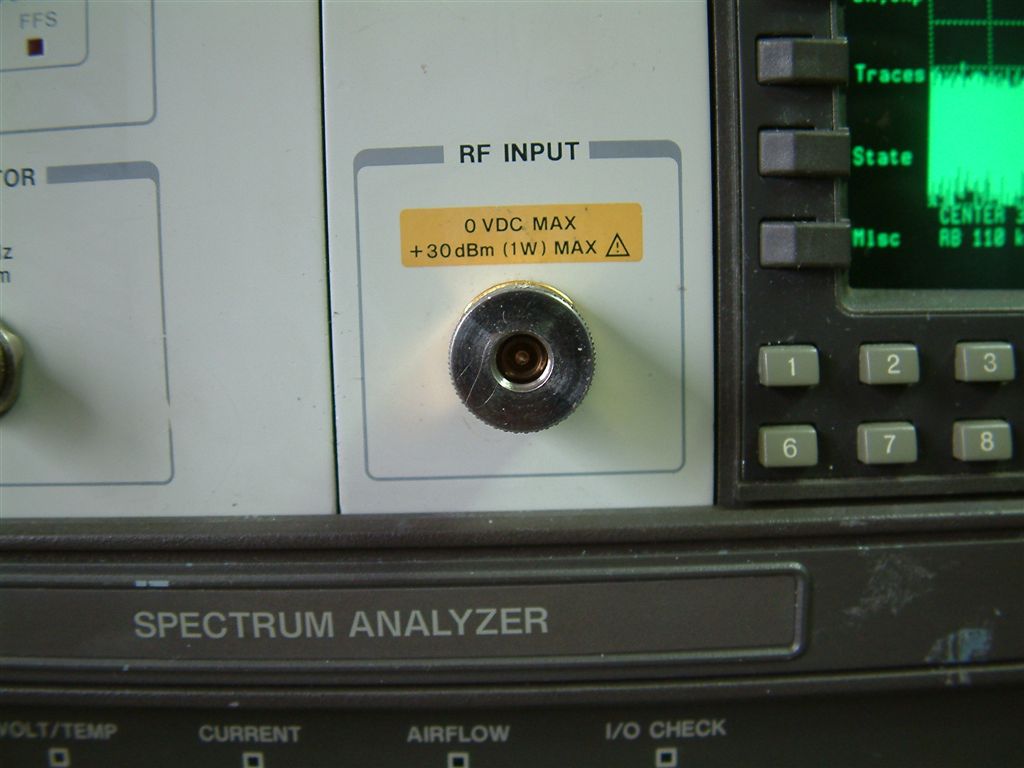

- Input Connector: 3.5 mm (f)
- Input Impedance: 50 ohm

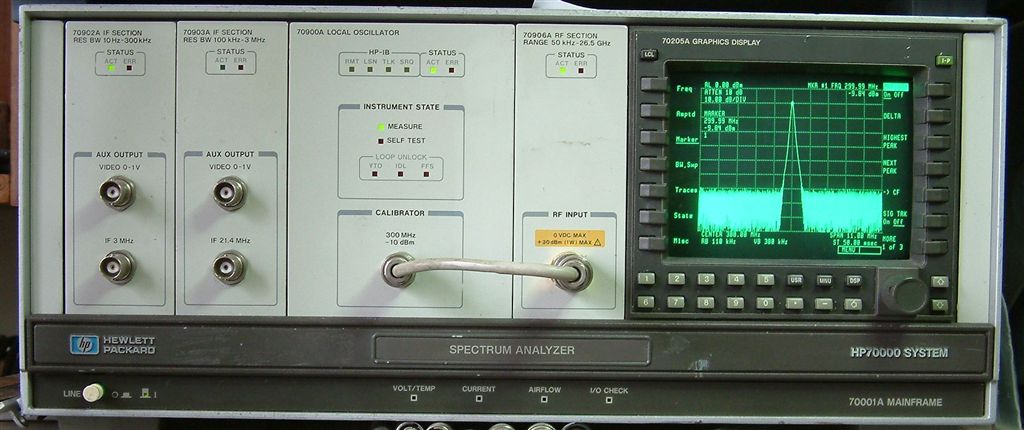

This system is
composed of the following:
- 70206A - Systems Graphic Display
- 70001A - Modular Mainframe

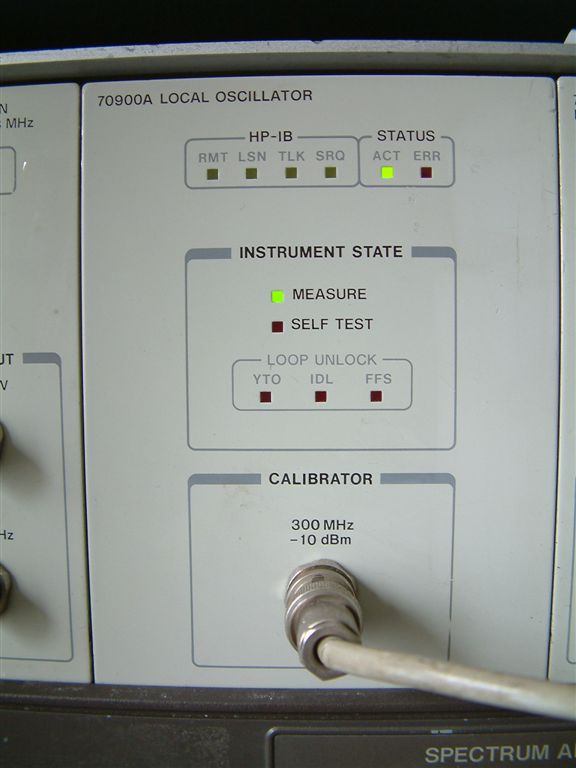

- 70900A - Local Oscillator

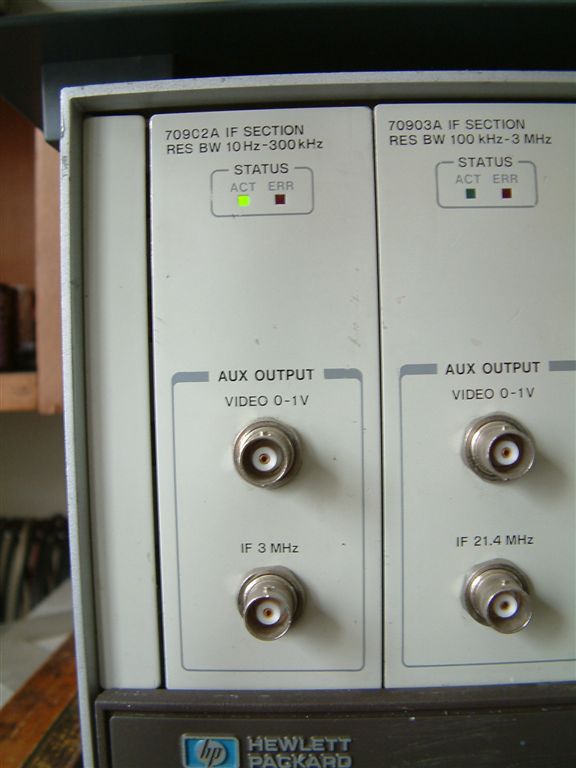

- 70902A - IF Section Res BW 10 Hz to 300 kHz
- 70903A - IF Section Res BW 100 KHz to 3 MHz

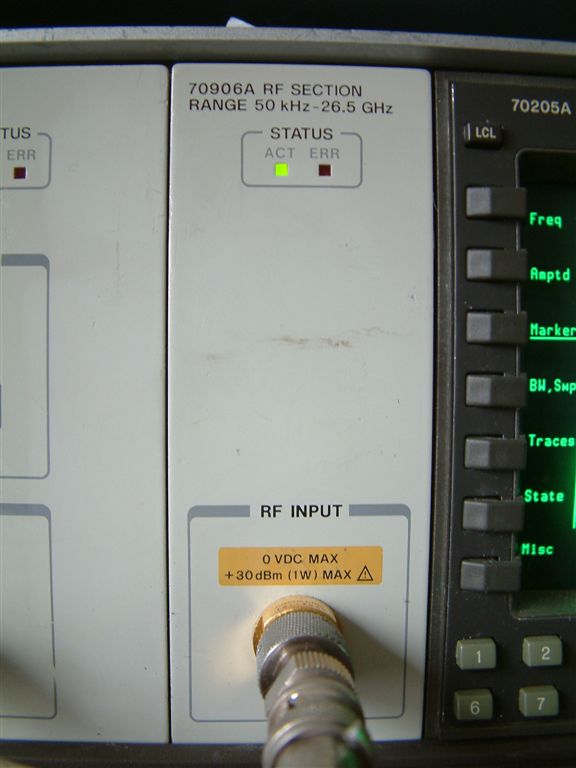

- 70910A - RF Section Range 50 KHz to 26.5 GHz
|
 |
