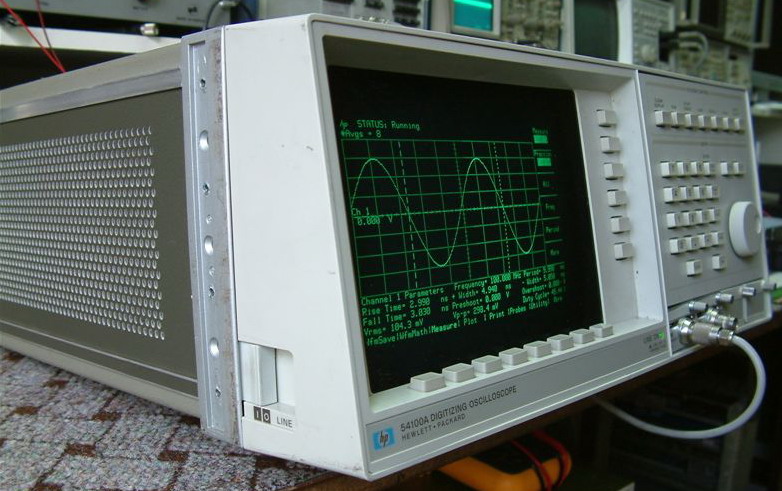

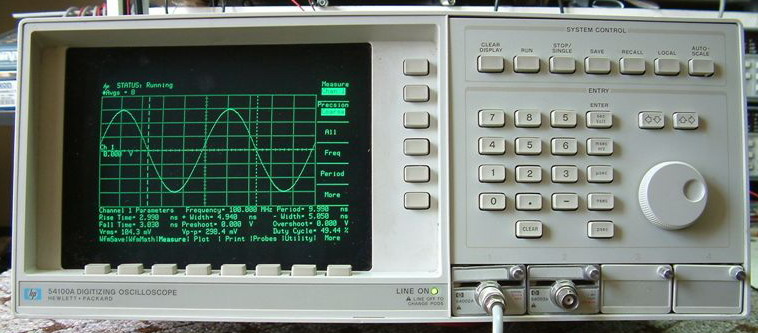

HP 54100A

HP 54100A

Digitizing Oscilloscope

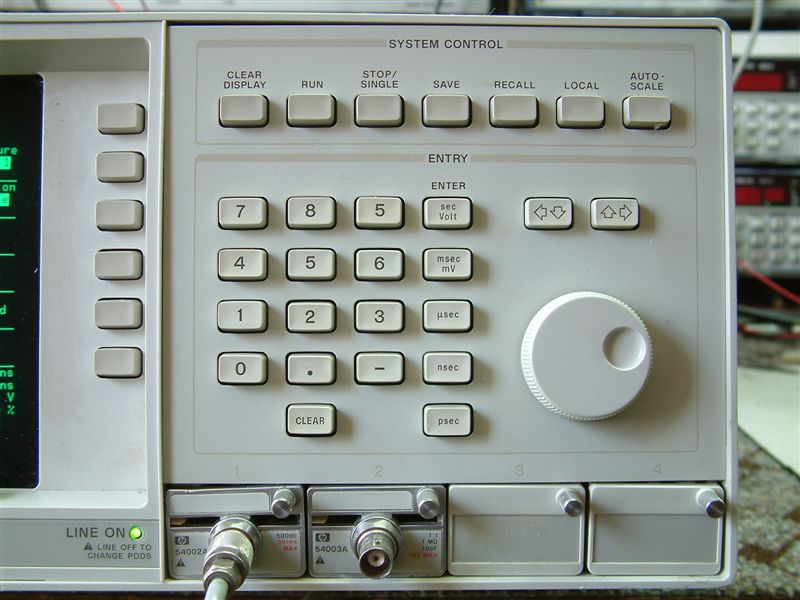

with 54002A  54003A


Bandwidth 1 GHz

Number of Channels 2 ch

Simultaneous Channels 2 ch

Simultaneous Maximum Sampling Rate/ch 40 MSa/s

One ch.only max. sampling rate 40 MSa/s

Max. Single Shot bandwidth 4 MHz

Max. Record Length 1000 pt/sec

Min. Vertical Sensitivity 10 mV/div

Maximum Vertical Sensitivity 1 V/div

Channel to Channel Delay 10 ps

Rise time 350 ps

Number of Bits 7 bits
