HP 8922M

HP 8922M TESTER



Specifications:

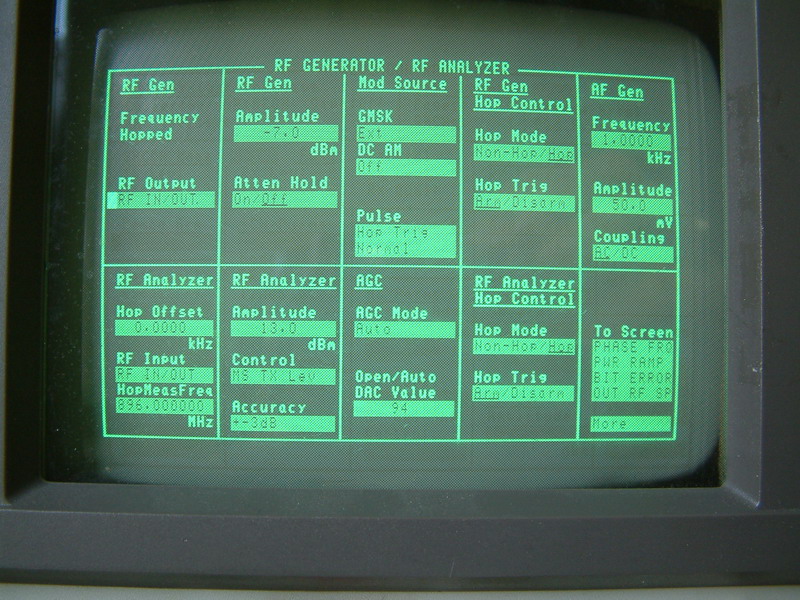

RF Generator

Frequency Range 10 MHz to 1000 MHz

Frequency Resolution 1 Hz

Switching Speed 577us

0.3 GMSK Modulation External clock and data

Pulse Modulation Normal and 30dB

Output Power -14 to -127 dBm

RF Analyzer

Frequency Range 10 MHz to 1000 MHz

Frequency Resolution 1 Hz (100 kHz in hop mode)

Switching Speed 577us

Coherent Data Demodulation 0.3 GMSK at 270.833 Kb/s, 1 timeslot/frame

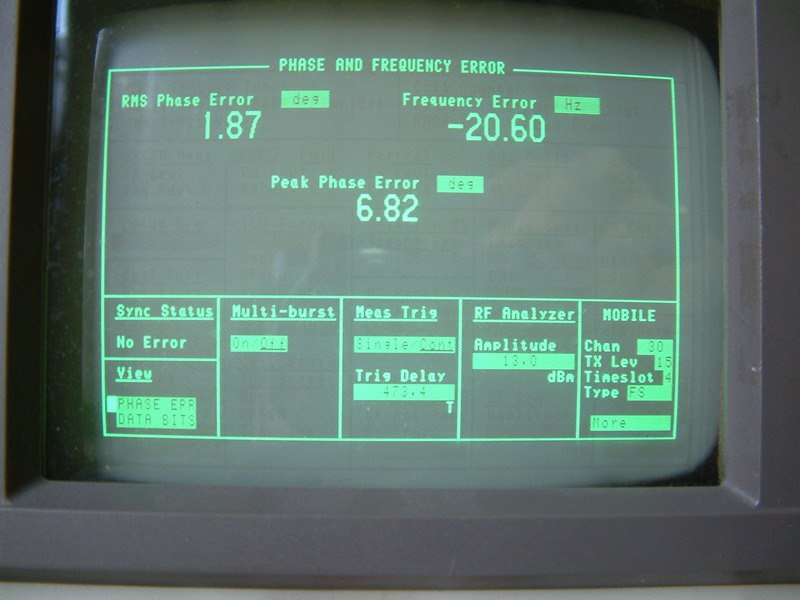

Global Method rms and peak phase error/frequency error

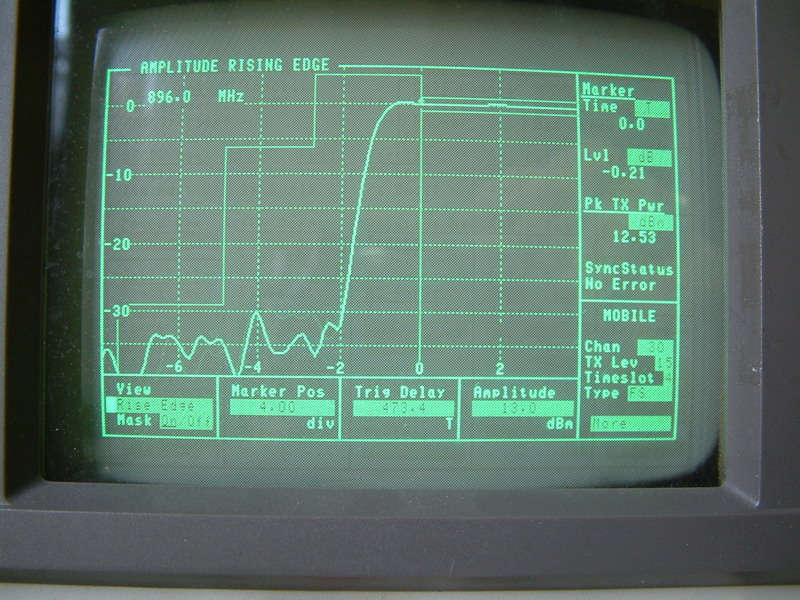

Amplitude Envelope Rise, fall, and burst flatness over useful bits

Peak Transmitter Power -5 dBm to 41 dBm

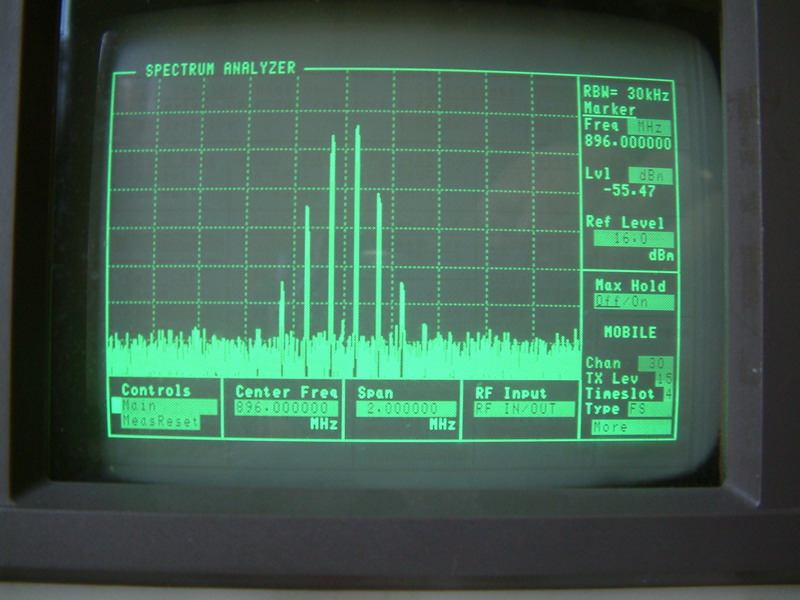

Spectrum Analyzer (Option 006)

Frequency Range 10 MHz to 1000 MHz

Frequency Accuracy and Stability Same as timebase

Display Range 80 Db

Other Features External trigger, marker

Digital Oscilloscope

Frequency Range 2 Hz to 50 kHz

Sweep Times 10us to 100 ms in 1,2,5,10 steps

Frequency Range: 20 Hz to 400 kHz

AC Voltage Range: 0 to 30 Vrms

DC Voltage Range: 100 mV to 42 V

THD + Noise 1 kHz ± 5 Hz

SINAD 1 kHz ± 5 Hz

Audio Source

Frequency Range DC to 25 kHz

Output Level Range 0.1 mVrms to 4 Vrms

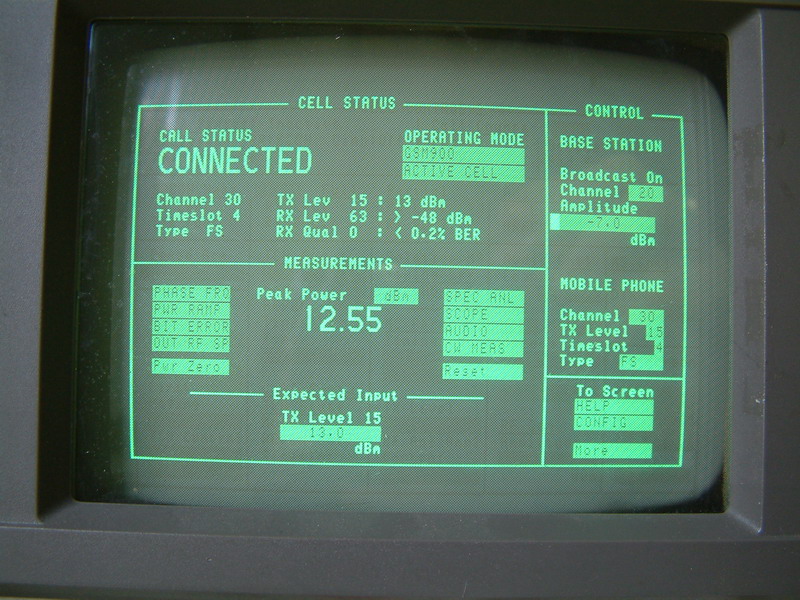

Every set has been tested to pass GSMDIAG, DCSDIAG, RF_DIAG, AF_DIAG, MS_DIAG and self-test, as well as to make calls to a handset and to receive them.  Calibration due time has passed according to labels.  A calibration (non-accredited) can be negotiated for a moderate cost.

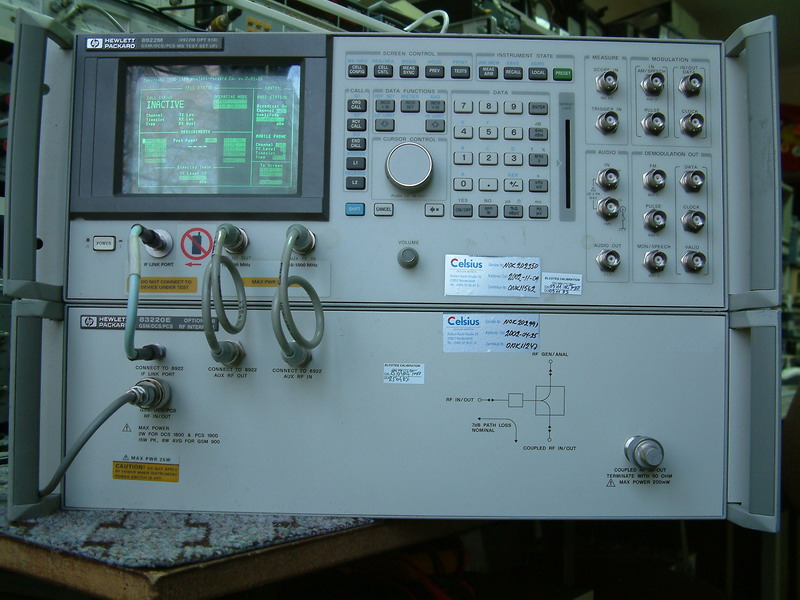

Comes with manuals on CD and all the cables except the power cord and the handset cable in the picture (it's just a self-made coax loop antenna) .  A Test SIM Card will be included for no additional charge as long as there is stock.

Documents:

http://cp.literature.agilent.com/litweb/pdf/5964-6586E.pdf

http://cp.literature.agilent.com/litweb/pdf/5966-1617E.pdf
