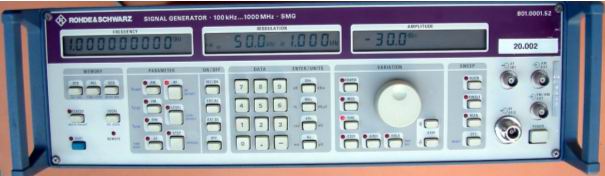

RF Range: 100 KHz to 1000 MHz
ˇ
Resolution: 1 Hz
ˇ
Output level: -140 to +16 dBm
ˇ
Output Impedance: 50 Ohms
ˇ
SSB Phase noise, 20 KHz offset, 1Hz BW: -148dBc at 50
MHz, -142 dBc at 100 MHz, -136 dBc at 250 MHz, -130 dBc at 500 MHz,
-124 dBc at 1000 MHz.
ˇ
AM, FM, PM, Pulse modulation
ˇ
Built-in easy to use sweep functions
ˇ
Nonvolatile storage of up to 50 instrument set-ups,
memory sequence
ˇ
Built in IEEE-488 control
ˇ
100/120/220/240 VAC operation, 47-440 Hz
|
