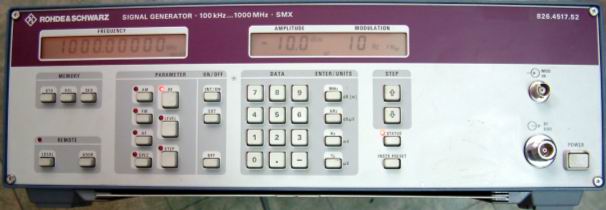

- Frequency range: 100 KHz-1000 MHz
- Frequency resolution: <25 Hz
- FM-AM-PM modulation
- Internal modulation generator
- Overload protection: RF :30 W , DC: 35 V
- Impedance: 50 Ohm
- Modulation modes: INT,EXT,INT+EXT
- IEC/IEEE-488 bus
- Temperature range: 0-50 ºC
- Dimensions: 427x132x460 mm
- Weight: 12,5 kg
|
|
