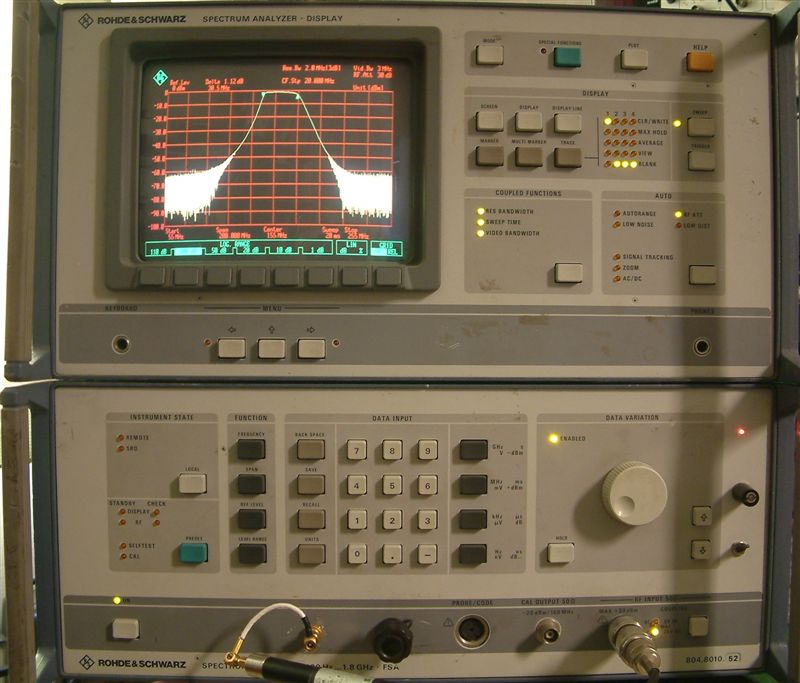

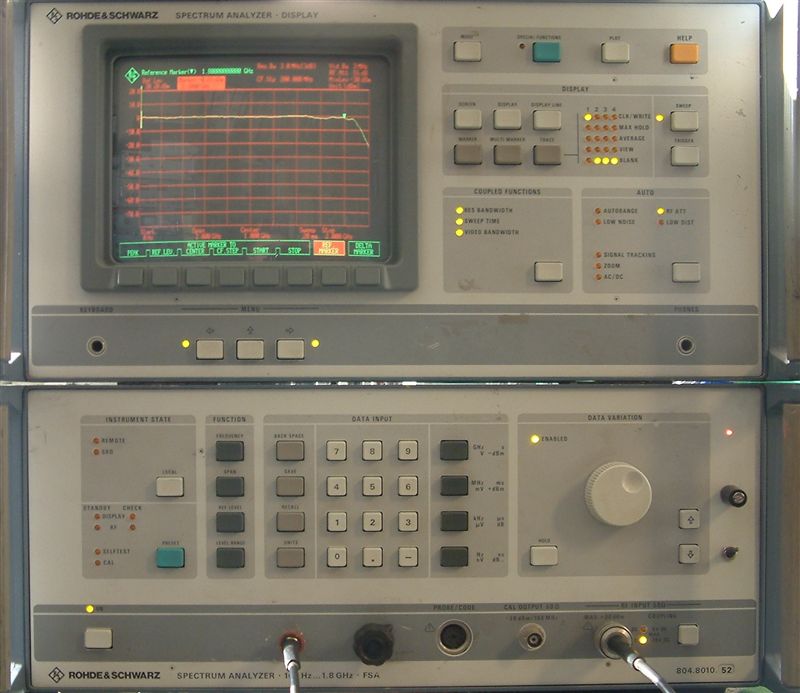

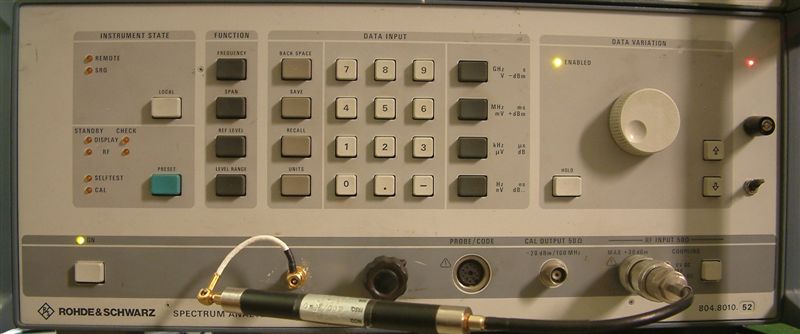

Rohde & Schwarz FSA Spectrum Analyzer 100HZ-1.8GHZ+Tracking
generator
Specifications
ˇ
Resolution: 0.01dB
ˇ
Loss: >120dB
ˇ
Level range: < -145 to +30dBm
ˇ
Frequency Range: 100Hz to 1.8GHz
ˇ
Input Impedance: 50ohms
ˇ
Resolution Bandwidth: 10Hz to 3MHz
ˇ
Video Bandwidth: 1Hz to 10MHz
ˇ
CF phase noise: 1GHz
ˇ
Reference level range: -140 to +30dBm
Key Points
ˇ
Resolution of 0.01dB
ˇ
Frequency Range from 100Hz to 1.8GHz
ˇ
Input Impedance of 50ohms
ˇ
Resolution Bandwidth from 10HZ to 3MHz
ˇ
Video Bandwidth from 1Hz to 10MHz
|
