10 kHz to
21 GHz Coaxial Frequency Range
-

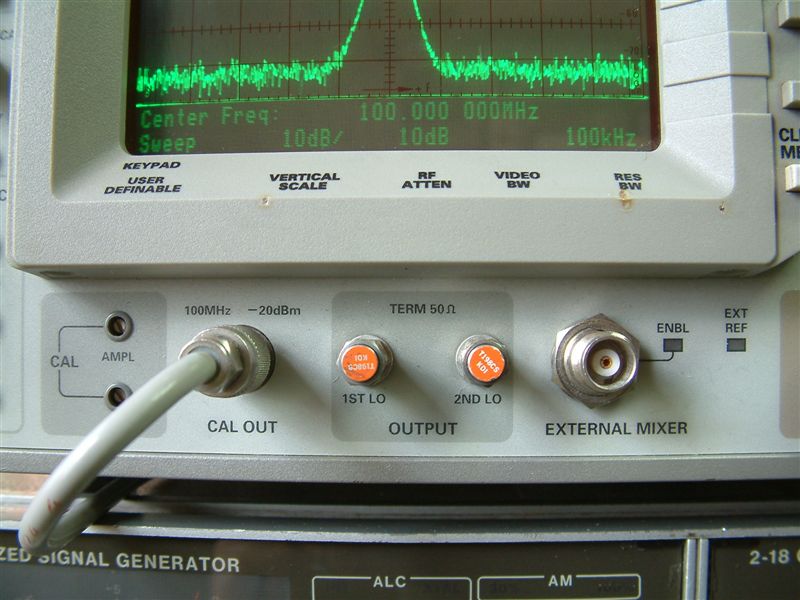

External
Waveguide Mixer Support to 325 GHz
-
Full-range
Sweep from 0 Hz to 21 GHz
-
Resolution
BW from 3 Hz to 10 MHz in a 1, 3, 10 Sequence
-
100 dB
Display Dynamic Range
-
Phase Noise
Performance as Low as -105 dBc/Hz at 10 kHz Offset up to 21 GHz
-
Built-in
Math Functions
-
Intelligent
Markers/Signal Processing: Search, Sort, and Mark CW, Pulse, or All
Signals
-
Occupied
Bandwidth Mode
-
Signal
Tracking
-
Built-in
100 Hz to 1.2 THz Frequency Counter with Frequency Measurement
Accuracy of </=400 Hz at 21 GHz
-

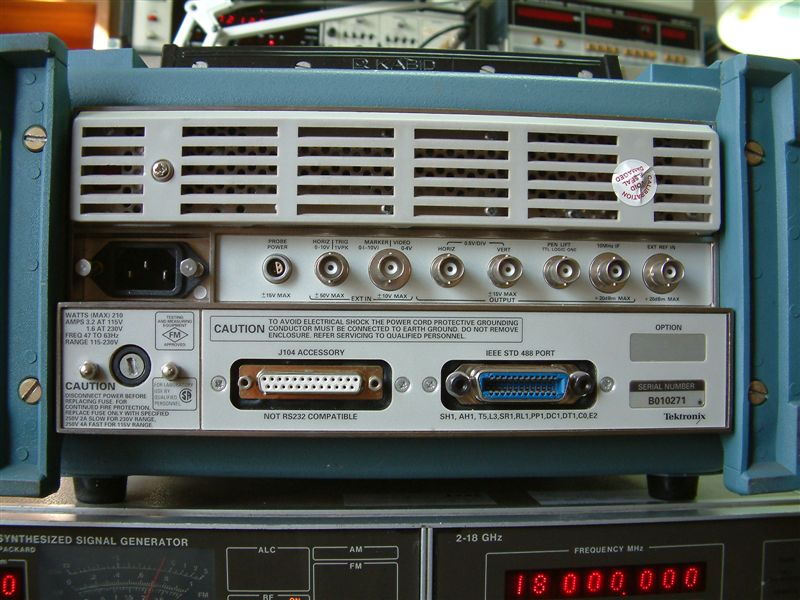

Fully
Programmable with Two GPIB Interfaces
-
Built-in
Automation
-
Store up to
10 Front-panel Key Sequences
-
Store up to
10 Waveforms with Readout Information
-
Store up to
10 Instrument States
