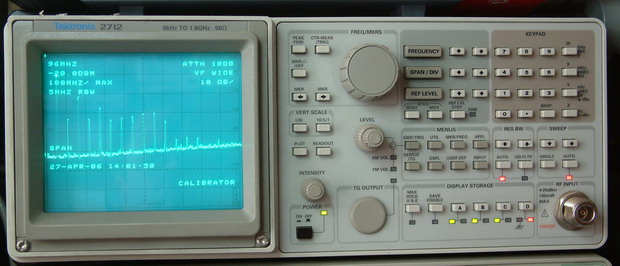

Tektronix 2712

Spectrum Analyzer

• Frequency range 10 kHz to 1.8 GHz
•  Resolution bandwidth 3 kHz to 5 MHz
•  -129 dBm to +20 dBm amplitude measurement range
•  Digital storage display
•  Internal preamplifier (switchable on/off)

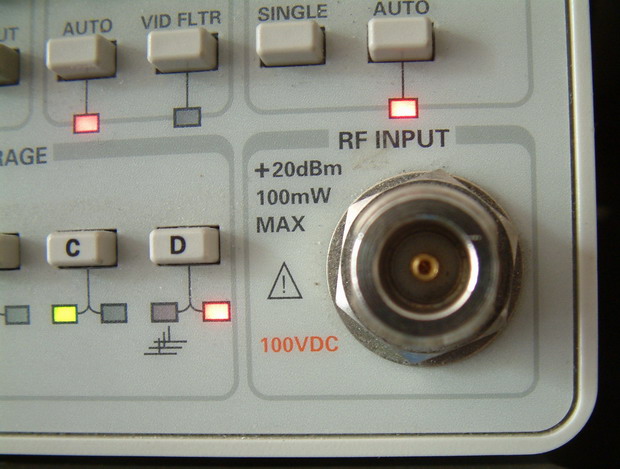

•  N(f) input connector
•  50 ohm input impedance
•  90-250 Vac; 48-440 Hz operation
•  Weight: 21 lb; Size: 137 mm (5.4 in)H x 361 mm (14.2 in)W x 445 mm (17.5 in)D

      User manual click here
